High-precision multi-pole ferrite ring magnets and injection-moulded rotor components engineered for energy-efficient ceiling fans and industrial BLDC motors. We deliver superior magnetic distribution to eliminate slip loss and maximize motor efficiency.
Tight tolerances for dynamic rotor balance.

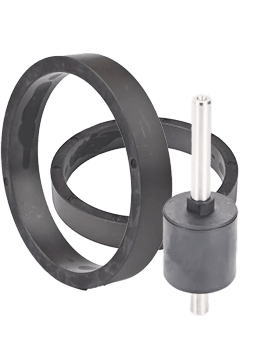

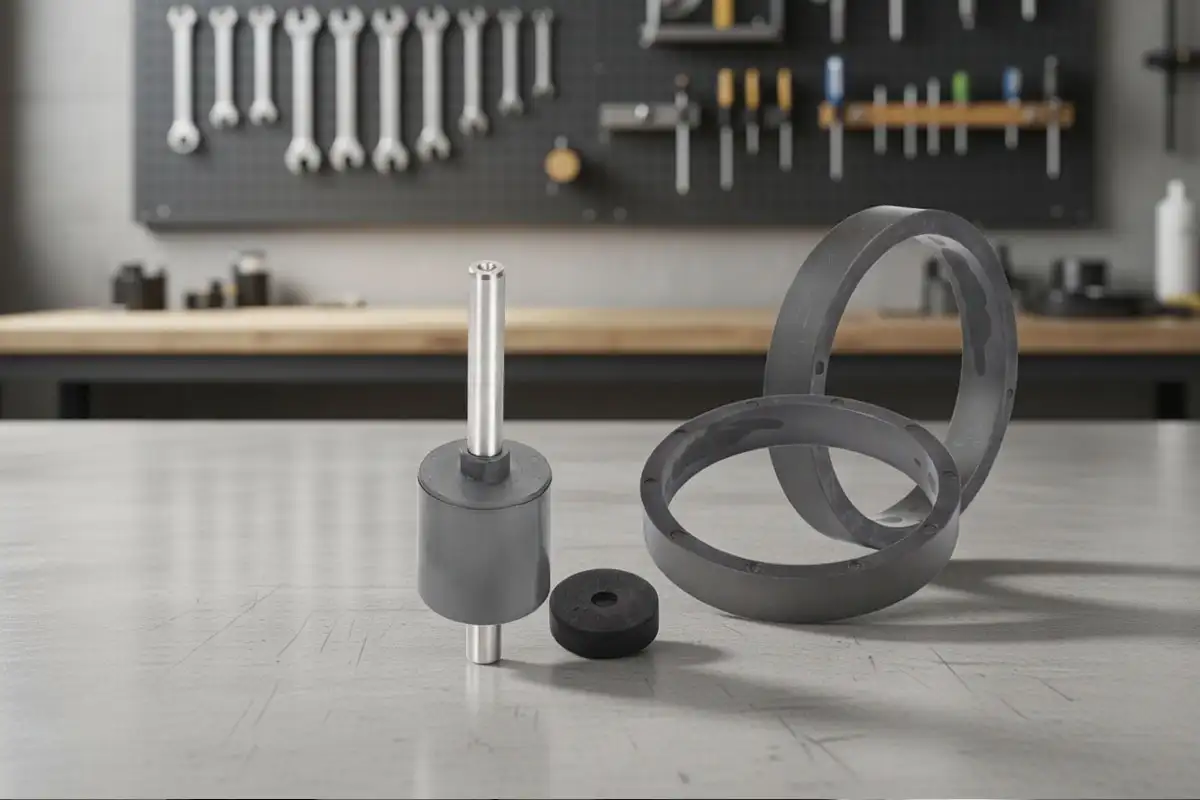

MIIPL specializes in the manufacture of multi-pole BLDC ferrite ring magnets and injection-moulded rotor magnets designed to revolutionize motor efficiency. By utilizing precision-engineered magnetic materials, our solutions eliminate slip loss in ceiling fan motors, enabling systems to achieve over 90% motor efficiency.
Our injection moulding process allows for the creation of complex geometries with extreme precision. This ensures that every magnet provides uniform magnetic distribution, which is critical for minimizing motor noise, reducing vibration, and eliminating cogging torque in high-end BLDC assemblies.
Engineered to reduce power consumption by up to 70%, supporting BEE 5-Star rated energy standards.
Complex shapes achieved via polymer-ferrite injection moulding for tighter tolerances than traditional sintering.
High thermal resistance up to 150°C, ensuring consistent magnetic flux even during continuous industrial duty.
Why leading motor OEMs choose MIIPL's injection-moulded BLDC magnets for their high-efficiency product lines.
Uniform magnetic distribution eliminates field distortion, drastically reducing acoustic noise and vibration.
Injection moulding enables complex geometries and precise inner/outer diameters with minimal material waste.
Precision machining and moulding ensure perfectly balanced rotors, reducing wear on motor bearings.
Polymer-bound ferrite matrices offer inherent resistance to oxidation without needing expensive coatings.
Available in 8, 12, 16+ pole configurations, including skewed pole patterns to reduce cogging torque.
High-volume production capabilities ensure consistent quality across millions of units for global supply chains.
Detailed technical parameters for our BLDC ferrite ring magnets. We offer both standard specifications and fully customized engineering solutions.
Discuss Your Requirements| Parameter | Standard Specification | Customization Capability |
|---|---|---|
| Outer Diameter (OD) | 50mm to 155mm | Custom diameters to engineering drawings |
| Inner Diameter (ID) | 86.2mm to 135mm | Precision slit/bored inner diameters |
| Height / Thickness | 20mm to 25mm | Tailored height options |
| Dimensional Tolerance | ±0.05mm standard | Precision machining up to ±0.03mm |
| Magnetization Pattern | Multi-Pole Radial (8, 12, 16+ poles) | Custom axial or skewed poles |
| Material Grades | Sintered / Injection Moulded Ferrite | Custom binder matrices (PA6, PA12, PPS) |
| Temperature Stability | High thermal resistance (up to 150°C) | Custom temperature coefficients |
Our technical team works closely with your engineers to ensure the magnetic flux and dimensional tolerances align perfectly with your motor's electromagnetic design.
From residential cooling to industrial automation, our BLDC and injection-moulded magnets are the core of modern brushless motor technology.
High-efficiency rotor magnets designed for the latest generation of energy-saving ceiling fans.
Durable ring magnets for pedestal, wall-mounted, and heavy-duty industrial exhaust fan motors.
Precision-moulded magnets for automotive BLDC actuators and small-scale EV motor assemblies.
Compact, high-torque magnets for brushless motors in modern household appliances and robotics.
Combining material science with precision moulding, MIIPL provides the technical edge needed for next-generation motor design.
Tight dimensional control via injection moulding ensures seamless fit and balance in the rotor assembly.
Our magnets are specifically formulated to reduce slip and cogging, maximizing overall motor efficiency.
Access to specialized polymer-ferrite matrices (PA6, PPS) for specific thermal and mechanical needs.
Collaborative design process to optimize pole counts and magnetization for your specific motor torque requirements.
Optimized production lines capable of meeting large-scale OEM requirements with consistent batch-to-batch quality.
Rigorous testing for magnetic flux density and dimensional accuracy before every shipment.
